Vipom's pumps
pumps


K/50-160



TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
K/50-160

11,1

36

65

3

11

178

17,5

30

72

3,5

20,8

26

70

4

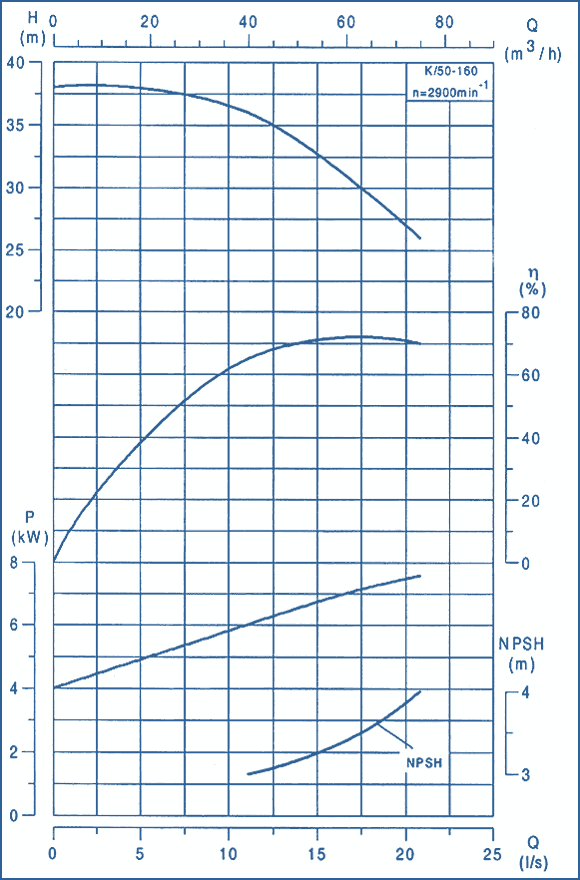

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

LA

LB

LC

HA

HB

E

M

S

Unit mass, kg

K/50-160

11

1115

450

180

195

235

340

304

18

208




DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions

Flange Dimensions
overall and mounting dimensions
