K-A/40-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K-A/40-250 | 5,6 | 68 | 42 | 2,5 | 15 | 235 | 8,9 | 60 | 47 | 3 | 11,7 | 48 | 42 | 3,5 |

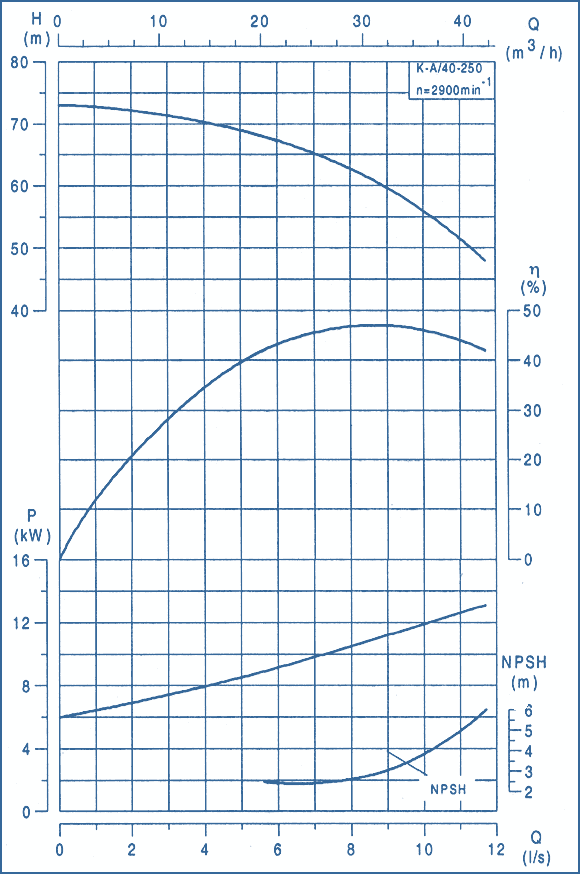

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K-A/40-250 | 15 | 1203 | 600 | 171 | 225 | 250 | 400 | 360 | 18 | 358 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
