K/40-160
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K/40-160 | 5,6 | 32 | 52 | 2,5 | 7,5 | 166 | 8,9 | 30 | 60 | 3 | 12,5 | 24 | 59 | 4 |

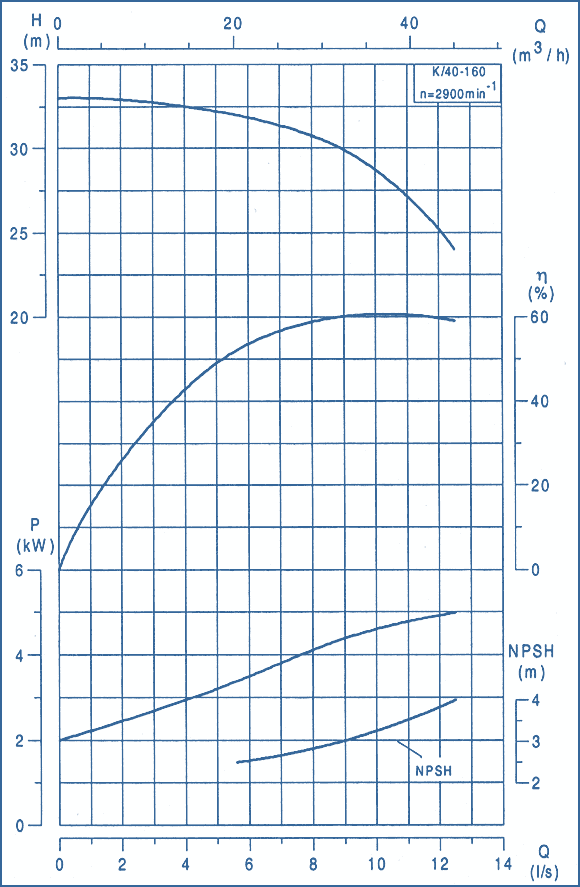

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/40-160 | 7,5 | 960 | 595 | 171 | 195 | 235 | 340 | 305 | 18 | 168 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
