description drawings diagrams technical data:

6SH35

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
6SH35	3,5	40	40	5,5	175
	5,5	37	51
	7,5	32	47,5

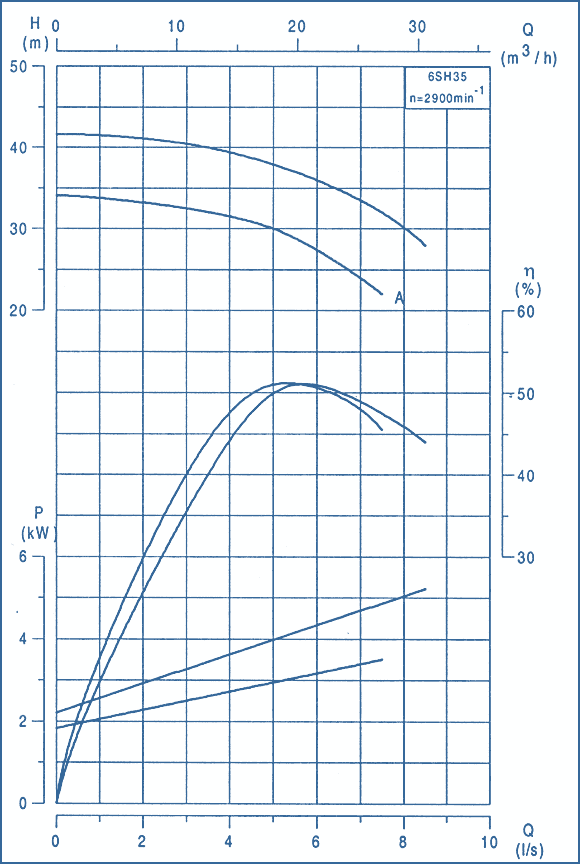

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	BA	BB	BC	BD	BE	HA	HB	HC	a	Unit mass, kg
5,5	884	90	600	120	170	105	280	230	300	250	420	14	108

Flange Dimensions According to BSS EN 1092-2

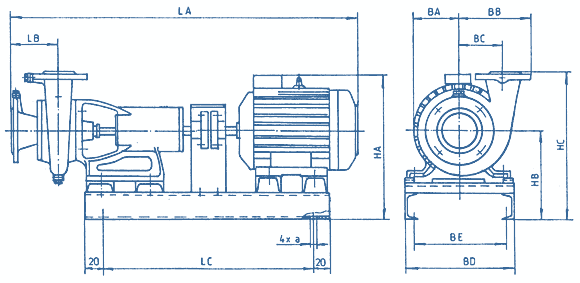

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
