4MP25.8
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW |
| 4MP25.8 | 2 | 213 | 48 | 22 | 2,78 | 192 | 55 | 3,3 | 154 | 53 |

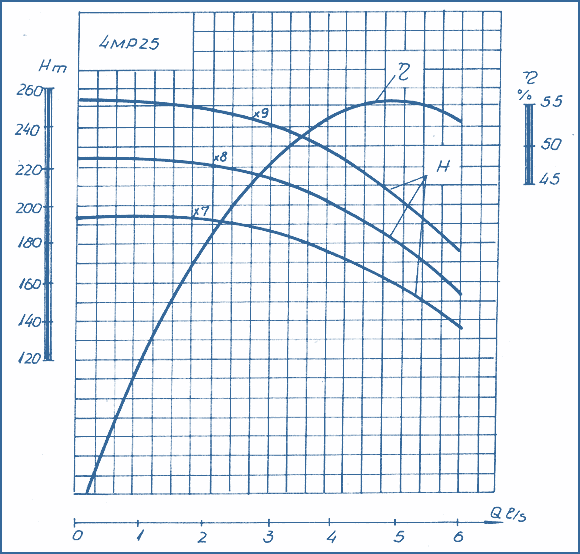

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPower, kW | LA | LB | LD | LE | LG | BA | BB | BC | HA | HB | HC | D | K | O | d | Z | Pump mass, kg | Unit mass, kg | 22 | 1765 | 254 | 1022 | 528 | 325 | 410 | 355 | 400 | 575 | 280 | 455 | 50 | 125 | 160 | 18 | 4 | 189 | 421 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
