3MP18.10
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW |
| 3MP18.10 | 2 | 185 | 48 | 13 | 2,78 | 170 | 52 | 3,3 | 150 | 51 |

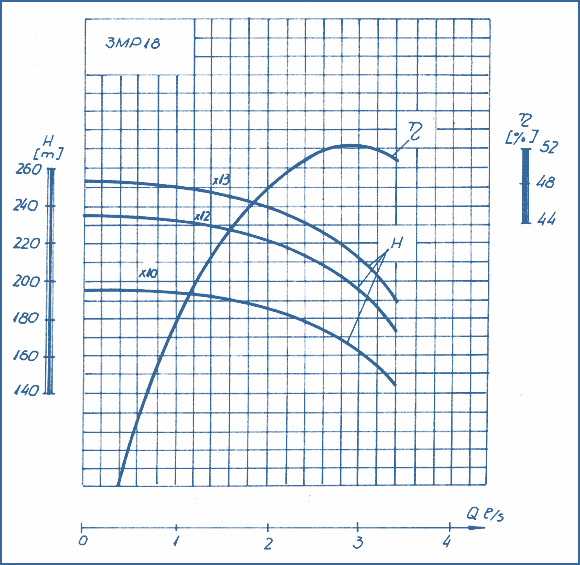

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPower, kW | LA | LB | LD | LE | LG | BA | BB | BC | HA | HB | HC | D | K | O | d | Z | Pump mass, kg | Unit mass, kg | 13 | 1700 | 248 | 1255 | 565 | 320 | 386 | 280 | 325 | 475 | 276 | 426 | 50 | 125 | 160 | 18 | 4 | 151 | 293 | 13 | 1670 | 248 | 1480 | 565 | 320 | 285 | 250 | 300 | 455 | 254 | 402 | 50 | 125 | 160 | 18 | 4 | 151 | 282 |

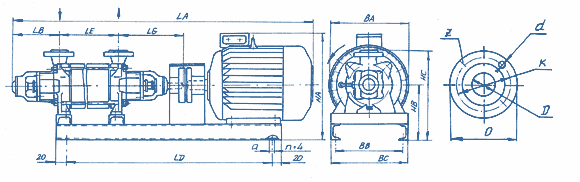

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
