2MP18.9
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW |
| 2MP18.9 | 1,2 | 180 | 36 | 10 | 1,75 | 165 | 42 | 2,5 | 132 | 40 |

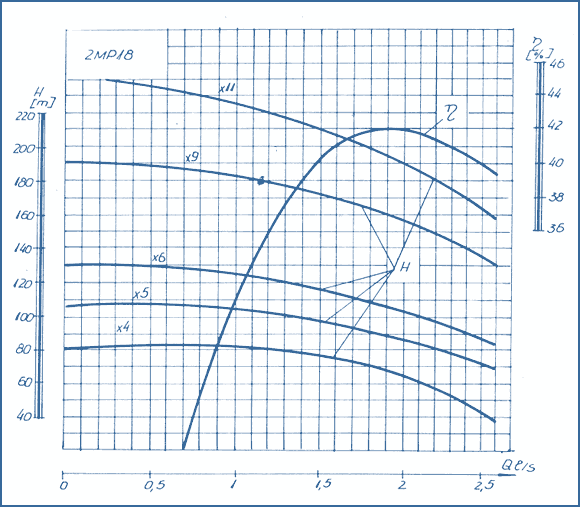

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPower, kW | LA | LB | LD | LE | LG | BA | BB | BC | HA | HB | HC | D | K | O | d | Z | Pump mass, kg | Unit mass, kg | 11 | 1643 | 248 | 1450 | 513 | 320 | 280 | 240 | 280 | 455 | 260 | 410 | 50 | 125 | 160 | 18 | 4 | 142 | 226 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
