50Е50-М
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 50Е50-М | 32 | 56 | 71 | 4,5 | 37 | 215 | 50 | 50 | 80 | 5 | 60 | 43 | 79 | 6 |

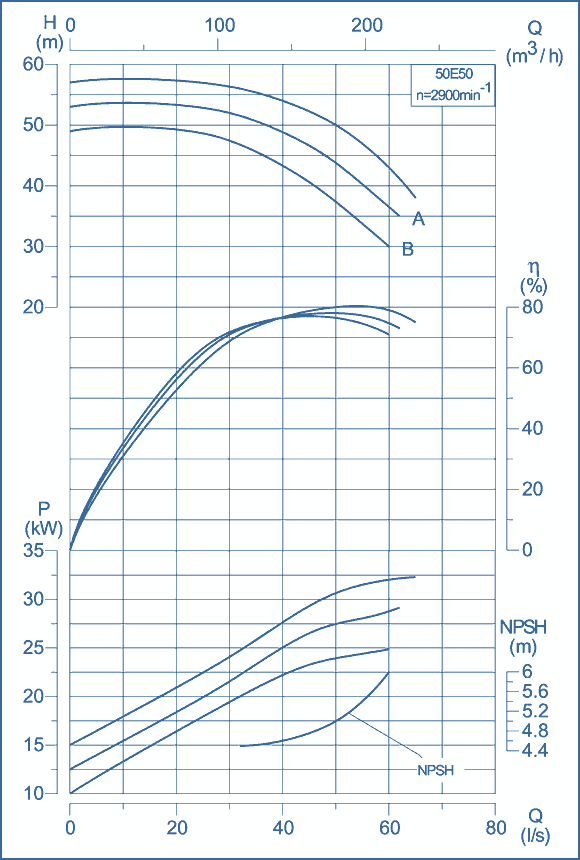

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | LD | BA | BB | BC | BD | BE | HA | HB | HC | a | Ds | Dd | Weight, kg | 3000 | 37 | 1070 | 211 | 360 | 305 | 205 | 283 | 180 | 390 | 318 | 510 | 200 | 400 | 19 | 150 | 100 | 327,5 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
