25Е50
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 25Е50 | 16 | 54 | 70 | 3,5 | 22 | 205 | 25 | 50 | 78 | 4 | 32 | 45 | 76 | 5 |

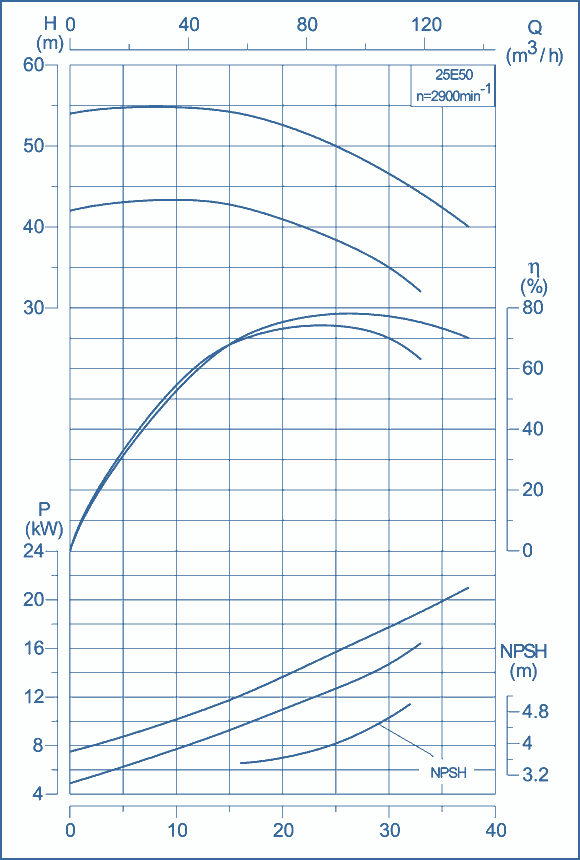

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 572 | 106 | 265 | 205 | 94 | 150 | 223 | 130 | 300 | 260 | 410 | 200 | 18 | 100 | 80 | 30 | 8 | 33 | 66 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 22 | 1310 | 106 | 827 | 150 | 222,5 | 130 | 310 | 320 | 600 | 330 | 540 | 18 | 332 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
