25Е32А-М
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 25Е32А-М | 14 | 32 | 62 | 3,4 | 11 | 165 | 23 | 28 | 75 | 3,8 | 30 | 21 | 72 | 4,6 |

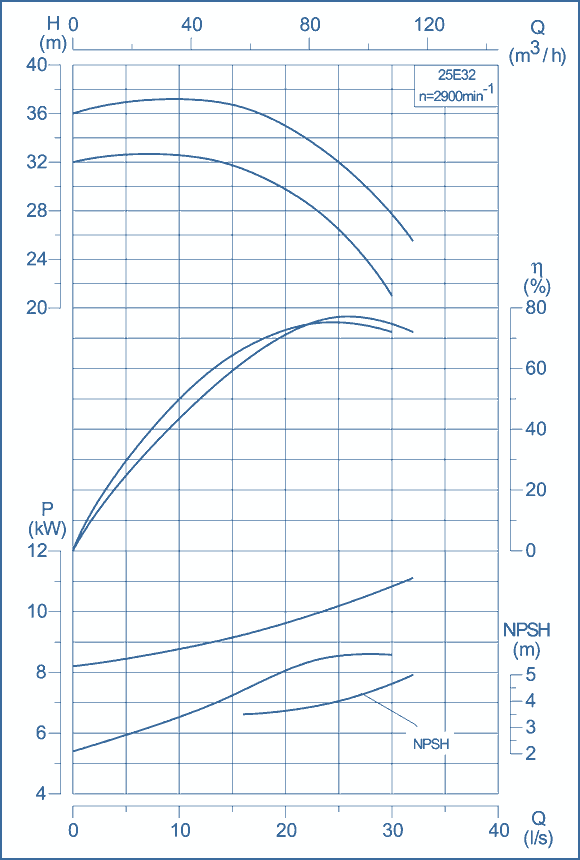

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | LD | BA | BB | BC | BD | BE | HA | HB | HC | a | Ds | Dd | Weight, kg | 3000 | 11 | 823 | 139 | 300 | 254 | 143 | 212 | 120 | 310 | 254 | 410 | 160 | 360 | 15 | 80 | 80 | 148 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
