25Е20А-М
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 25Е20А-М | 14 | 19 | 63 | 4,5 | 5,5 | 130 | 22 | 15,5 | 77 | 4,7 | 28 | 11 | 73 | 5,3 |

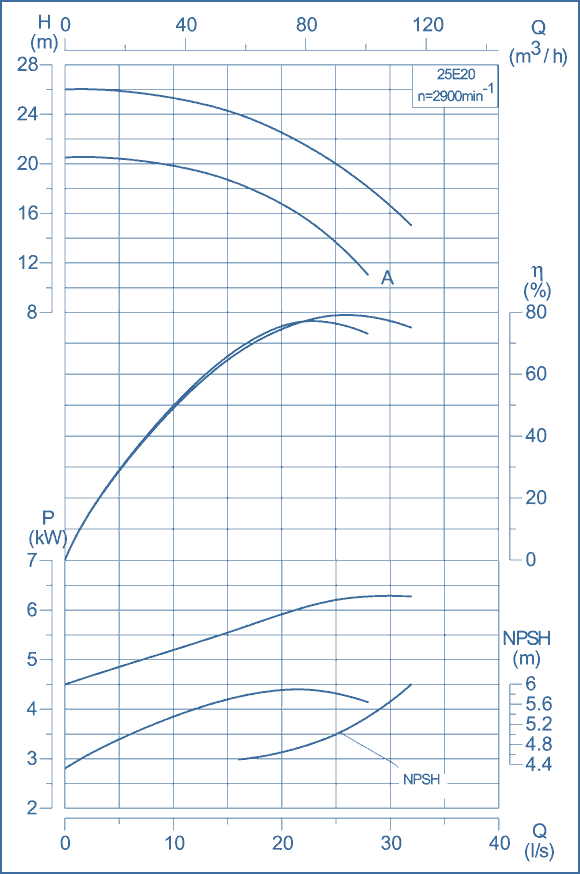

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | LD | BA | BB | BC | BD | BE | HA | HB | HC | a | Ds | Dd | Weight, kg | 3000 | 5,5 | 768 | 181 | 197 | 140 | 128 | 200 | 108 | 257 | 216 | 313 | 132 | 282 | 12 | 125 | 80 | 88,5 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
