25Е12
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 25Е12 | 16 | 15,5 | 72 | 3,5 | 5,5 | 125 | 25 | 12 | 79 | 4 | 30 | 9 | 71 | 4,5 |

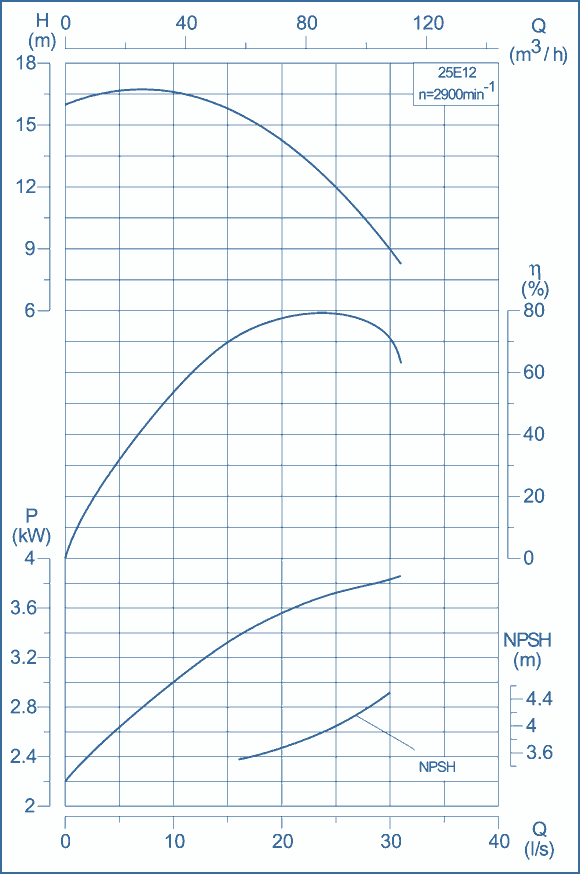

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 514 | 162 | 200 | 145 | 102 | 128 | 218 | 115 | 240 | 205 | 328 | 150 | 16 | 125 | 100 | 25 | 8 | 28 | 42 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 5,5 | 1021 | 162 | 575 | 128 | 218 | 115 | 250 | 200 | 440 | 210 | 380 | 14 | 114,5 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
