12Е32А
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 12Е32А | 8 | 29 | 60 | 3,4 | 5,5 | 156 | 11 | 27 | 69 | 3,8 | 15 | 22 | 68 | 4,8 |

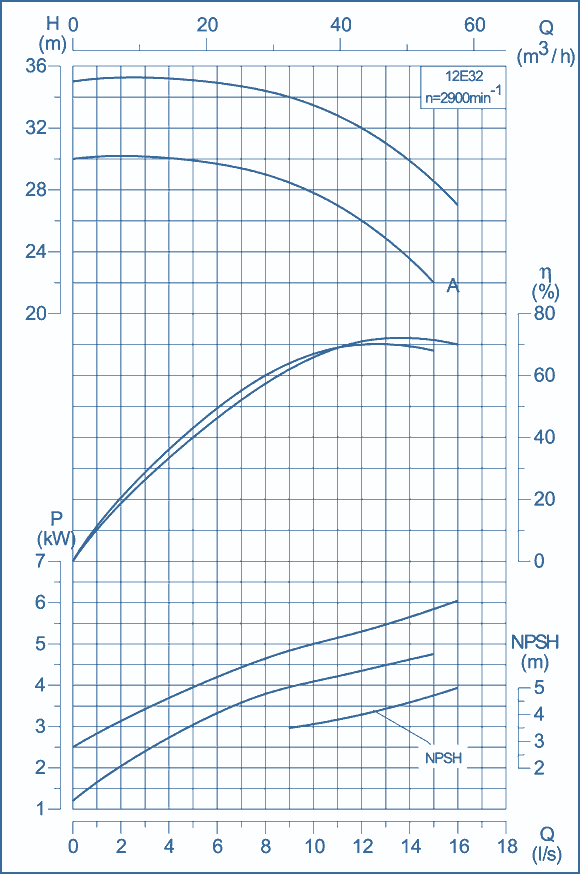

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 460 | 106 | 200 | 145 | 102 | 120 | 185 | 105 | 240 | 205 | 320 | 150 | 16 | 80 | 70 | 25 | 8 | 28 | 34,5 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 5,5 | 977 | 106 | 575 | 120 | 185 | 105 | 250 | 200 | 501 | 320 | 490 | 14 | 106,5 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
