12Е20
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 12Е20 | 8,5 | 22 | 69 | 3 | 5,5 | 142 | 12 | 20 | 75 | 3,5 | 16 | 16,5 | 73 | 5 |

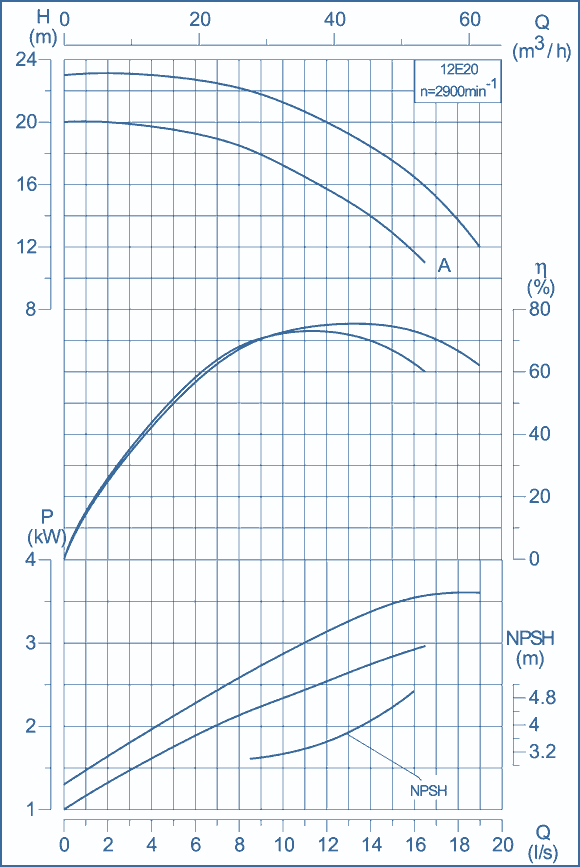

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 479 | 122 | 200 | 145 | 102 | 116 | 182 | 102 | 240 | 205 | 290 | 150 | 16 | 80 | 65 | 25 | 8 | 28 | 33 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 5,5 | 996 | 122 | 576 | 116 | 182 | 102 | 250 | 200 | 420 | 230 | 370 | 14 | 185 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
