12Е12А
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 12Е12А | 7,5 | 10,5 | 69 | 3,3 | 2,2 | 105 | 10 | 8,5 | 72 | 4 | 12 | 6 | 62 | 5 |

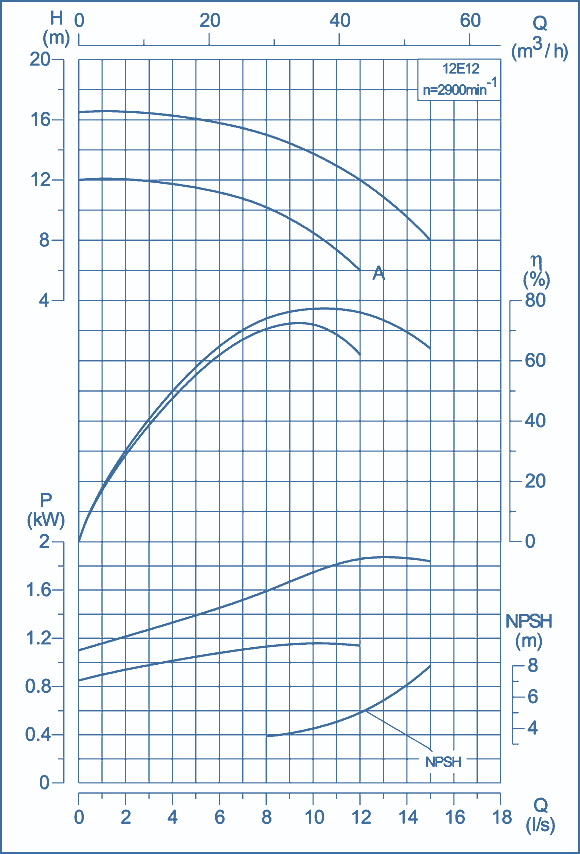

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 411 | 111 | 185 | 130 | 78 | 110 | 175 | 95 | 200 | 170 | 265 | 125 | 14 | 80 | 65 | 20 | 6 | 23 | 26,2 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 2,2 | 760 | 111 | 490 | 110 | 175 | 112 | 210 | 165 | 337 | 205 | 335 | 14 | 61 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
