6Е50А
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 6Е50А | 3,5 | 42 | 47 | 2,9 | 5,5 | 175 | 5,5 | 39 | 57 | 3,4 | 7,5 | 31 | 53 | 4,1 |

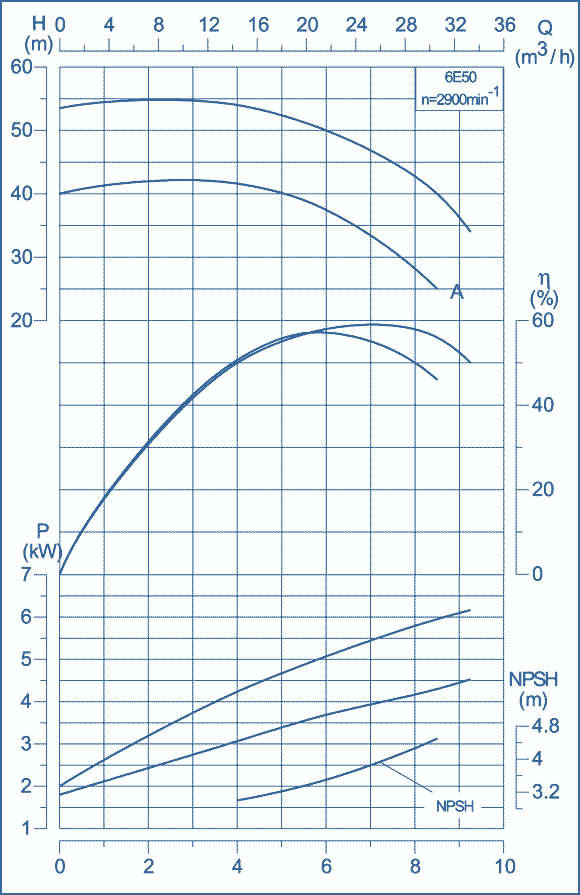

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 450 | 89 | 200 | 145 | 102 | 128 | 185 | 120 | 240 | 205 | 310 | 150 | 16 | 65 | 40 | 25 | 8 | 28 | 35,5 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 5,5 | 967 | 89 | 575 | 128 | 185 | 120 | 250 | 200 | 411 | 230 | 420 | 14 | 107,5 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
