Vipom's pumps
pumps


6Е32В



TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
6Е32В

3,5

26

62

3

3

142

5

24,5

67

3,3

7

20

60

4



PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

BA

BB

BC

BD

BE

HA

HB

a

Ds

Dd

d

s

t

Weight, kg

407

115

185

130

78

119

169

104

200

170

272

125

14

50

32

20

6

23

22


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

n

Power, kW

LA

LB

LC

BA

BB

BC

BD

BE

HA

HB

HC

a

Weight, kg

3000

3

786

115

510

119

169

104

250

200

365

225

360

14

70

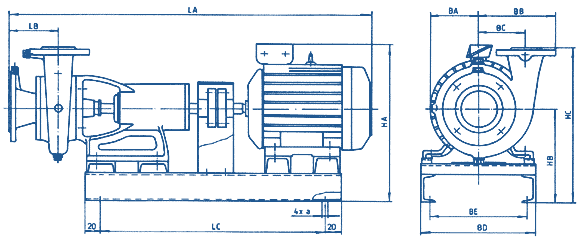

DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions

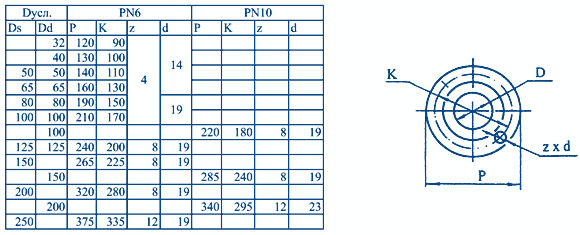

Flange Dimensions According to BSS EN 1092-2
overall and mounting dimensions
