6Е20
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 6Е20 | 4 | 22 | 64 | 3 | 2,2 | 134 | 6 | 20 | 71 | 3,5 | 8,5 | 14,5 | 67 | 5 |

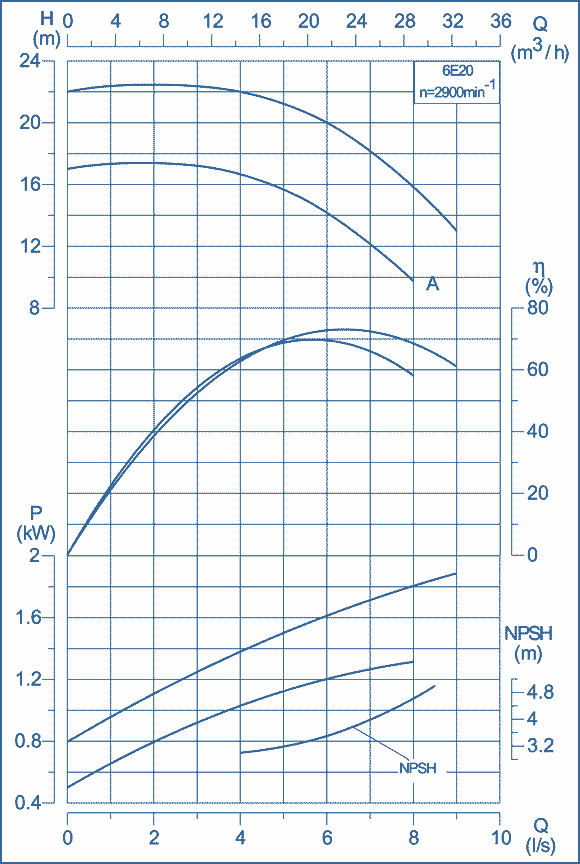

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 392 | 94 | 185 | 130 | 78 | 96 | 153 | 88 | 200 | 170 | 235 | 125 | 14 | 50 | 32 | 20 | 6 | 23 | 22 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 2,2 | 740 | 94 | 490 | 96 | 153 | 88 | 210 | 165 | 337 | 205 | 315 | 14 | 56,7 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
