6Е12А
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 6Е12А | 3,5 | 11,5 | 57 | 3 | 1,1 | 102 | 6 | 9,5 | 67 | 3,5 | 7,5 | 7 | 60 | 4 |

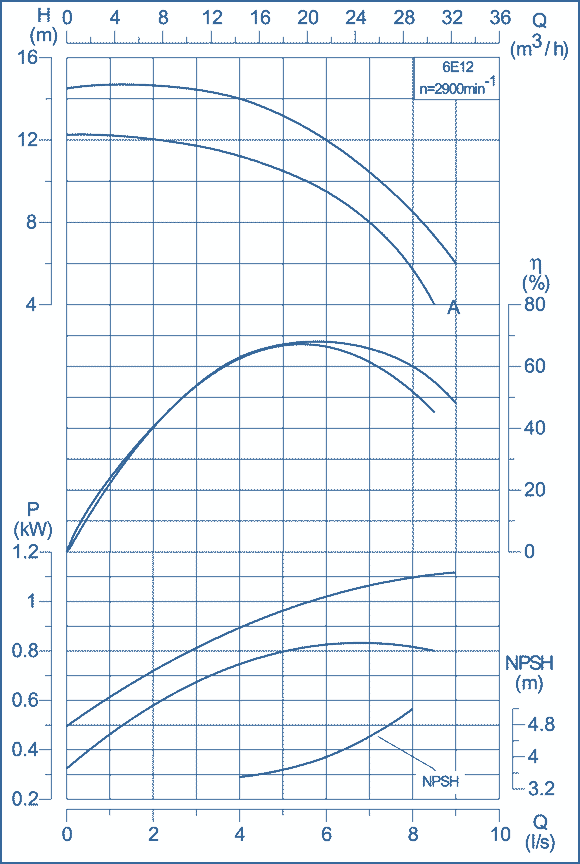

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | BA | BB | BC | BD | BE | HA | HB | a | Ds | Dd | d | s | t | Weight, kg | 401,5 | 96 | 185 | 130 | 78 | 86 | 145 | 75 | 200 | 170 | 275 | 125 | 14 | 50 | 32 | 20 | 6 | 23 | 22,1 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Power, kW | LA | LB | LC | BA | BB | BC | BD | BE | HA | HB | HC | a | Weight, kg | 3000 | 1,1 | 690 | 96 | 445 | 87 | 145 | 75 | 210 | 165 | 329 | 205 | 355 | 14 | 49 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions According to BSS EN 1092-2
|
|
