E-B/80-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E-B/80-250 | 27,5 | 65 | 67 | 2,9 | 45 | 230 | 41,5 | 60 | 74 | 3,7 | 52,5 | 52 | 73 | 4,6 |

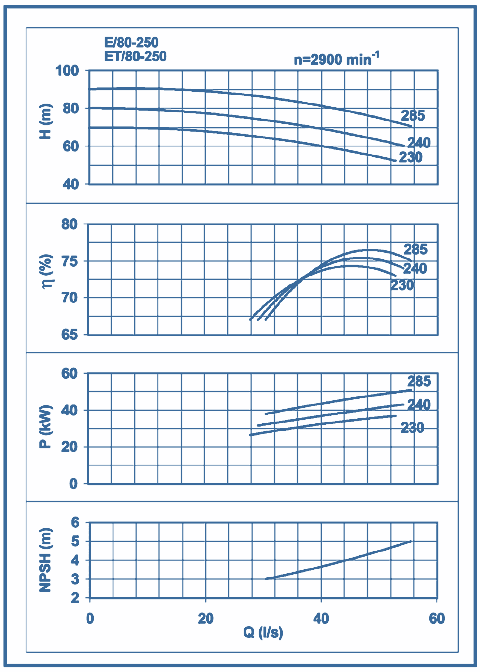

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 225M | 45 | 1554 | 125 | 470 | 140 | 1299 | 448 | 410 | 460 | 675 | 340 | 620 | 18 | 100 | 80 | 90 | 515 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
