E-A/80-160
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E-A/80-160 | 29 | 30 | 66 | 2,5 | 15 | 160 | 43 | 26 | 80 | 2,9 | 54 | 19 | 72 | 3,4 |

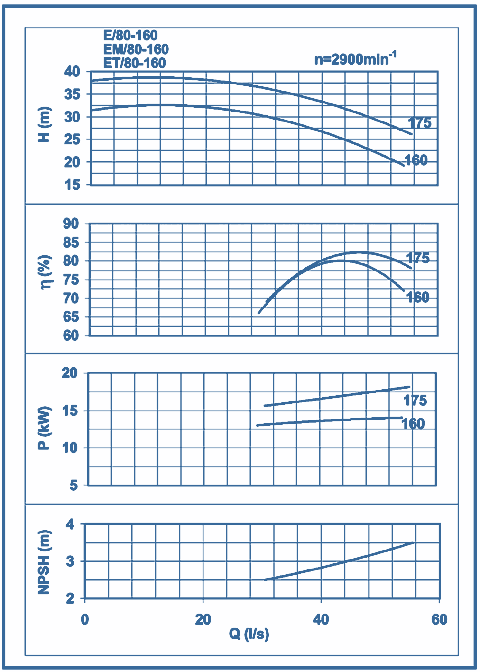

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 160M | 15 | 1279 | 125 | 360 | 140 | 1072 | 305 | 305 | 350 | 550 | 300 | 525 | 16 | 100 | 80 | 54 | 204 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
