E-A/65-200
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E-A/65-200 | 17 | 46 | 69 | 2,9 | 18,5 | 195 | 26 | 40,5 | 73 | 3,4 | 33 | 32 | 66 | 4,4 |

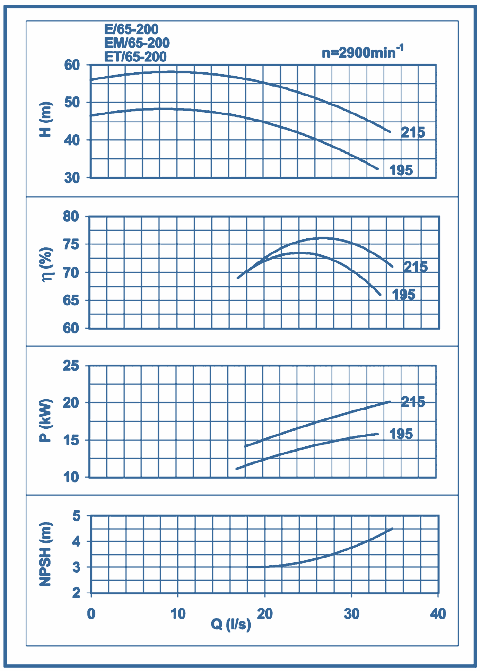

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 160L | 18,5 | 1254 | 100 | 360 | 140 | 1037 | 305 | 325 | 370 | 550 | 300 | 525 | 16 | 80 | 65 | 57 | 217 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
