90D71A (VD 315-71A)


pump 90D71A (VD 315-71A)

TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
90D71A (VD 315-71A)

55

68

72

5

90

222

75

64

79

6,5

90

60

74

8,5

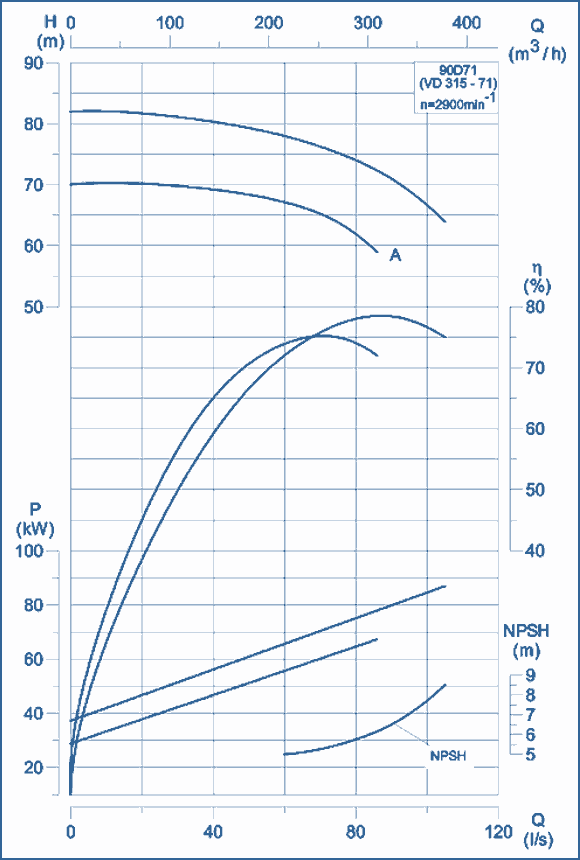

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

90D71A (VD 315-71A)

766

420

250

220

-

370

320

-

600

300

340

270

135

90

520

290

170

170

24

200

150

36

10

39

188


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

90D71A (VD315-71A)

90

1814

648

419

480

24

556

457

100

680

10

25

40

745


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
