85D50 (VD 315 -50)
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 85D50 (VD 315 -50) | 65 | 60 | 78 | 6 | 75 | 216 | 85 | 53 | 82 | 6,5 | 110 | 40 | 72 | 8 |

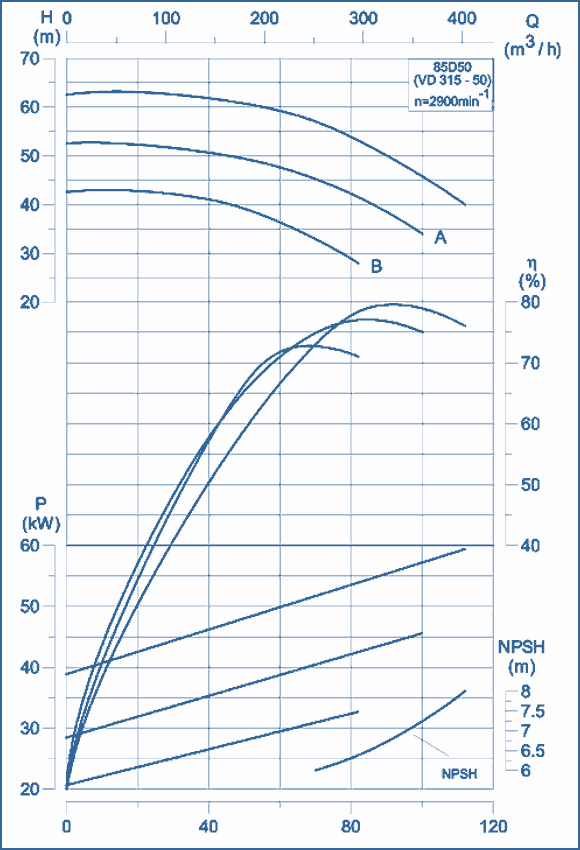

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 85D50 (VD 315 -50) | 766 | 420 | 250 | 220 | - | 370 | 320 | - | 600 | 300 | 340 | 270 | 135 | 90 | 520 | 290 | 170 | 170 | 24 | 200 | 150 | 36 | 10 | 39 | 188 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 85D50 (VD315-50) | 75 | 1814 | 648 | 419 | 480 | 19 | 556 | 457 | 100 | 680 | 10 | 25 | 40 | 700 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
