55D90B (VD 200 - 90B)


pump 55D90B (VD 200 - 90B)

TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
55D90B (VD 200 - 90B)

30

70

60

5

45

226

44

64

72

5,5

52

59

74

7



PERFORMANCE CURVES

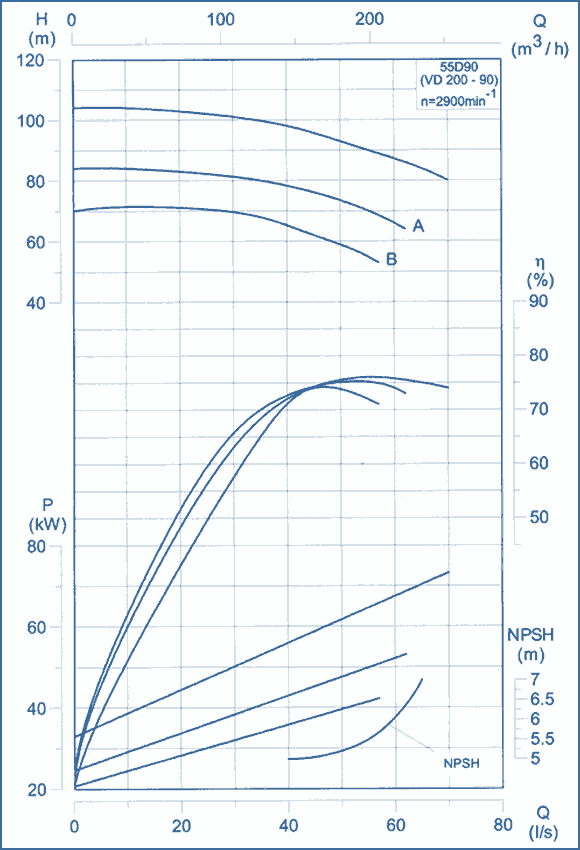

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

55D90B (VD 200 - 90B)

766

420

250

200

100

370

320

-

530

250

340

270

135

85

495

260

170

170

24

150

100

36

10

39

145


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

55D90B (VD200-90B)

55

1675

735

349

405

24

500

406

95

625

10

30

36

557

55D90B (VD200-90B)

45

1620

718

311

315

19

445

356

80

560

35

30

28

467


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
