E-B/32-125
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E-B/32-125 | 2,2 | 16,5 | 38 | 1,1 | 1,1 | 120 | 3,9 | 14 | 53 | 1,6 | 5 | 11 | 50 | 3 |

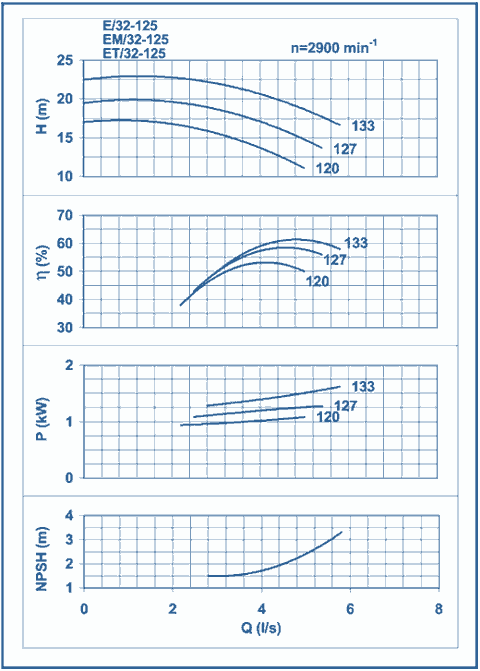

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 80 | 1,1 | 812 | 80 | 360 | 100 | 686 | 174 | 195 | 235 | 325 | 191 | 315 | 14 | 50 | 32 | 36 | 65 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
