28MTR45.6
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 28MTR45.6 | 20 | 306 | 65 | 3 | 132 | 207 | 27,8 | 270 | 73 | 4 | 35 | 222 | 67 | 6 |

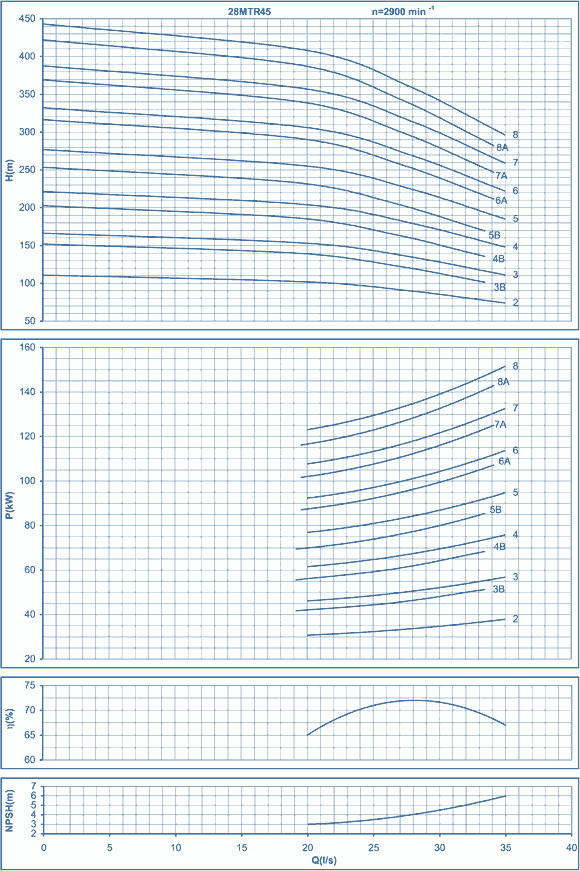

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 1315 | 270 | 694 | 384 | 615 | 725 | 22 | 245 | 350 | 400 | 445 | 200 | 23 | 38 | 10 | 41 | 125 | 100 | 309 |

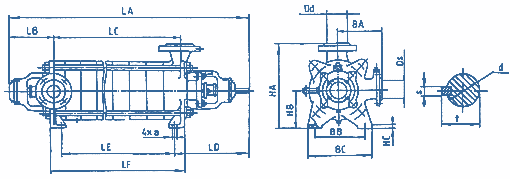

DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Р kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 3000 | 132 | 2472 | 270 | 694 | 353 | 1980 | 1005 | 18 | 245 | 620 | 650 | 981 | 531 | 776 | 1368 |

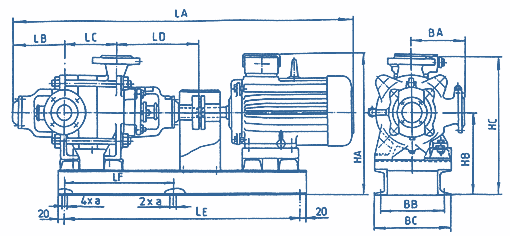

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
