18MTR32.10A
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 18MTR32.10A | 12,8 | 348 | 64 | 3 | 90 | 172 | 17,2 | 309 | 71 | 4 | 21,6 | 242 | 66 | 6 |

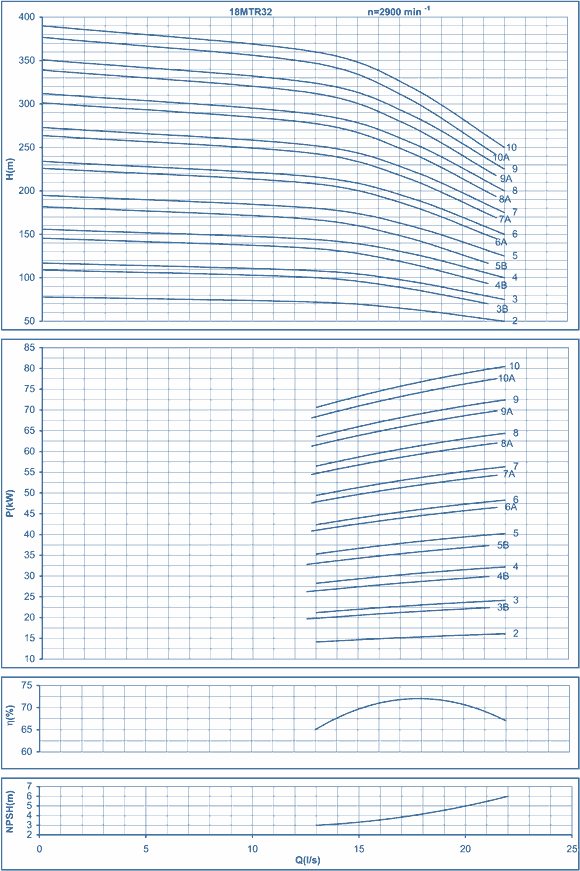

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 1566 | 244 | 997 | 356 | 944 | 1054 | 22 | 220 | 300 | 350 | 400 | 180 | 23 | 35 | 10 | 38 | 100 | 100 | 340 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Р kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 3000 | 90 | 2613 | 244 | 997 | 325 | 2133 | 1070 | 18 | 220 | 550 | 580 | 882 | 482 | 702 | 1060 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
