11MTR32.3
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 11MTR32.3 | 8,5 | 102 | 63 | 3 | 18,5 | 167 | 11,1 | 96 | 70 | 3,5 | 14 | 84 | 68 | 5 |

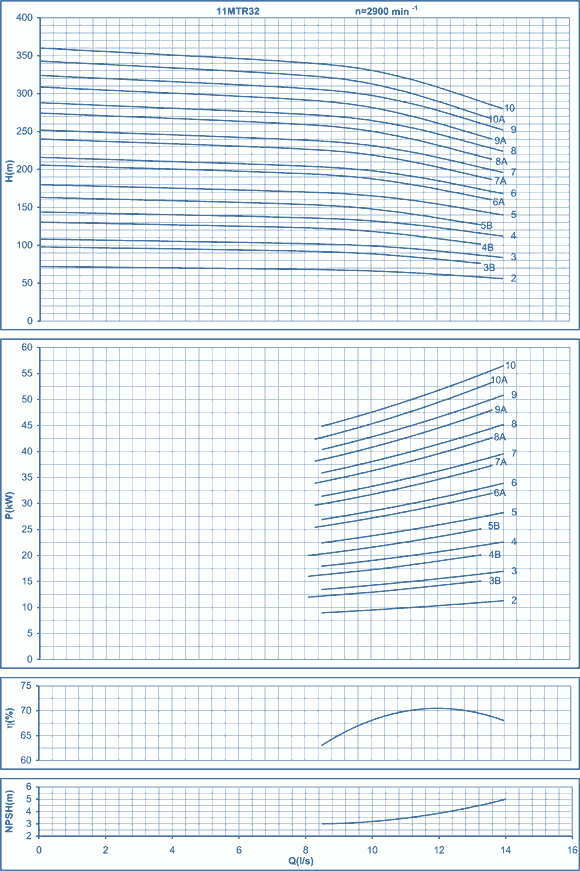

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPLA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | d | s | t | Ds | Dd | Weight, kg | 819 | 224 | 251 | 357 | 185 | 295 | 22 | 225 | 300 | 350 | 405 | 180 | 23 | 32 | 10 | 35 | 80 | 80 | 138 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITn | Р kW | LA | LB | LC | LD | LE | LF | a | BA | BB | ВС | HA | HB | HC | Weight, kg | 3000 | 18,5 | 1477 | 244 | 251 | 324 | 1120 | --- | 18 | 225 | 340 | 370 | 590 | 340 | 565 | 356 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
