3MTR18.6


model of pump 3MTR18.6

TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
3MTR18.6

2

108

50

2,5

5,5

125

2,78

102

58

3

3,5

84

60

5

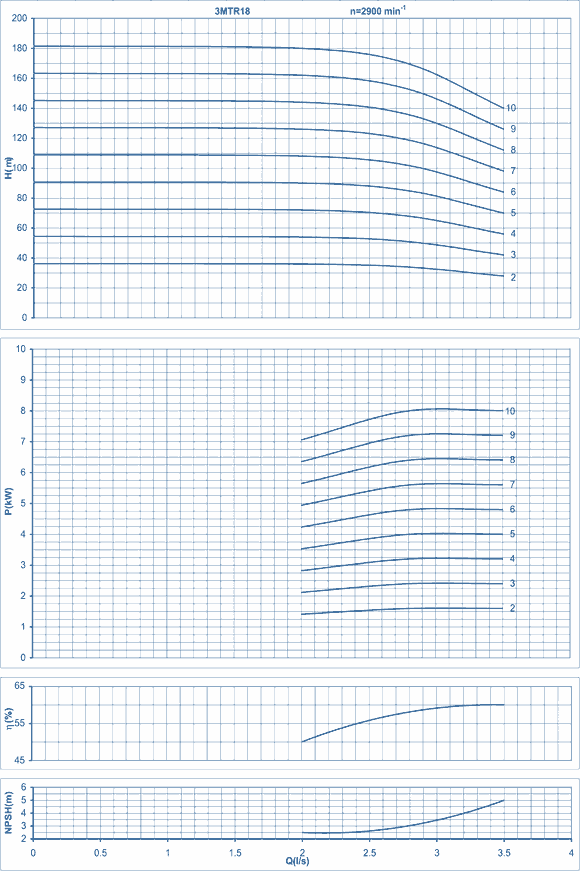

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

LA

LB

LC

LD

LE

LF

a

BA

BB

ВС

HA

HB

HC

d

s

t

Ds

Dd

Weight, kg

785

189

357

258

318

399

16

150

215

250

280

130

18

20

6

22,5

50

50

95


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

n

Р kW

LA

LB

LC

LD

LE

LF

a

BA

BB

ВС

HA

HB

HC

Weight, kg

3000

5,5

1238

189

357

241

980

---

18

150

260

290

433

252

400

194




DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
