70D125 (VD250-125)
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| 70D125 (VD250-125) | 45 | 135 | 65 | 5 | 160 | 310 | 70 | 125 | 73 | 5,5 | 84 | 118 | 69 | 6,7 |

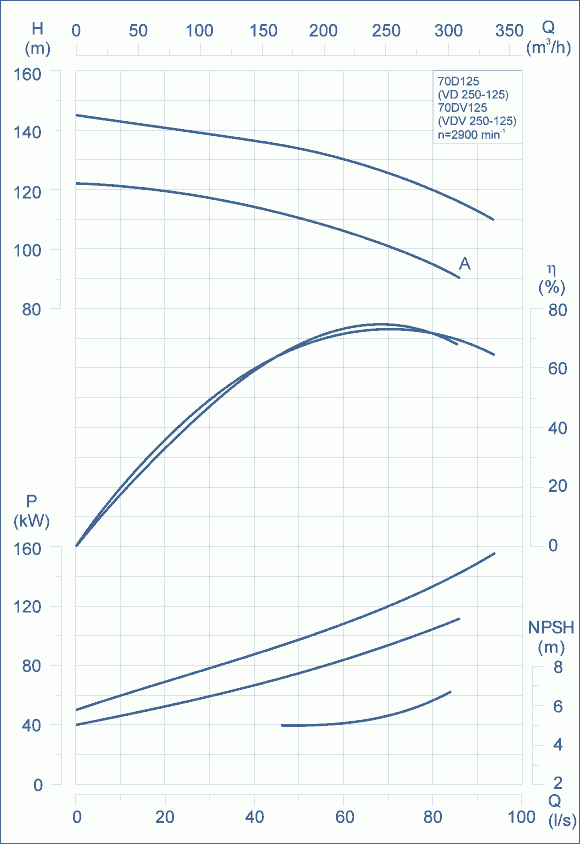

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 70D125 (VD250-125) | 757 | 420 | 250 | 200 | - | 370 | 320 | - | 550 | 250 | 335 | 270 | 130 | 85 | 472 | 260 | 170 | 190 | 24 | 150 | 100 | 36 | 10 | 36 | 176 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 70D125 (VD250-125) | 160 | 2055 | 626 | 457 | 578 | 28 | 630 | 508 | 120 | 765 | 55 | 20 | 45 | 1131 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
