90DV50B (VDV320-50B)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW | | 90DV50B (VDV320-50B) | 51 | 39 | 45 | 74 | 34 | 90 | 29 |

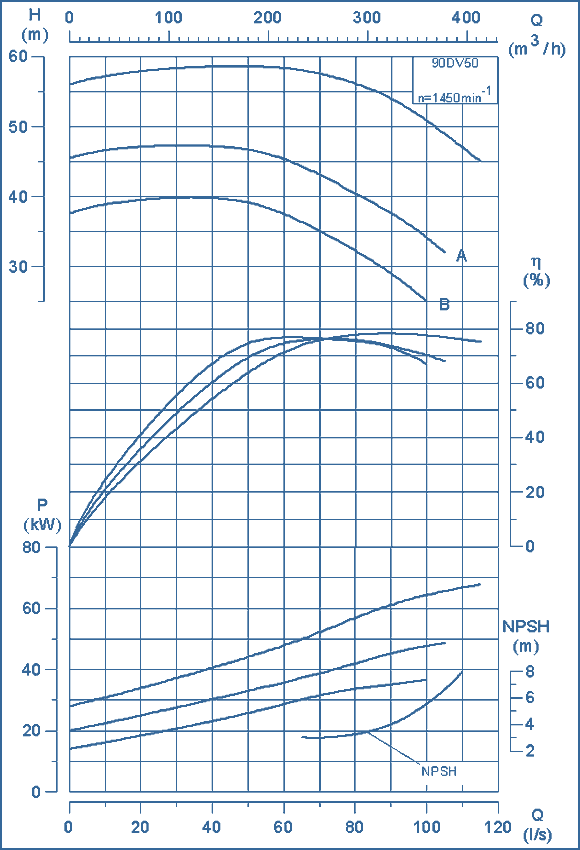

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | Power, kW | Overall dimensions of the pump (LxBxC), mm | Weight, kg | 90DV50B (VDV 320 - 50B) | 45 | 966x668x1120 | 417 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | Overall dimensions of the pump unit(LxBxH), mm | Weight, kg | 90DV50B (VDV 320 - 50B) | 45 | 966x668x1813 | 720 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
