ET /65-160
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | ET /65-160 | 9 | 9 | 66 | 1,2 | 2,2 | 172 | 13,9 | 8 | 74 | 1,6 | 17,3 | 6,5 | 71 | 2,6 |

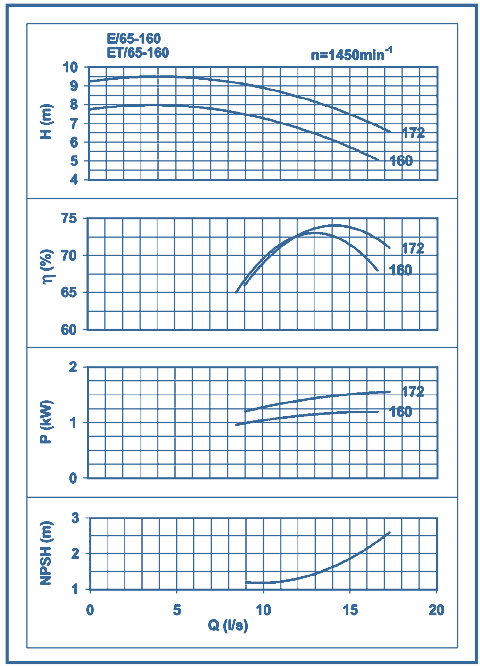

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 2,2 | 937 | 100 | 360 | 100 | 839 | 192 | 272 | 318 | 416 | 276 | 476 | 16 | 80 | 65 | 44 | 100 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
