400DT22.02
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW |
| 400DT22.02 | 350-450 | 50-35 | 250 |

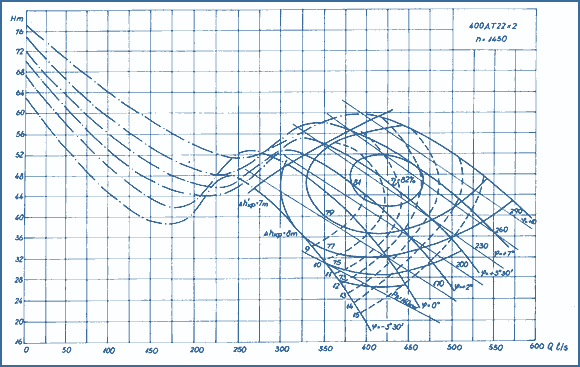

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPSections
(Long 1= 1600) | Sections
(Short 1= 1100) | LC, mm | 1 | 1 | 4100 | 2 | 1 | 570 | 3 | 1 | 7300 | 4 | 1 | 8900 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITBlades fixing angle in degr. | Power, kW | LD | Dy
( A) | D1
( А) | D
( А) | Zxo
( А) | Dy
( В) | D1
( В) | D
( В) | Zxo
( В) | S | H | -3°30 | 160 | 2190 | 400 | 840 | 900 | 12x24 | 400 | 495 | 535 | 16x23 | 450 | 770 | 0°, +2°, +3°30 | 250 | 2190 | 400 | 1080 | 1150 | 16x30 | 400 | 495 | 535 | 16xM20 | 550 | 860 | +7°, +10° | 315 | 2190 | 400 | 1080 | 1150 | 16x30 | 400 | 495 | 535 | 16xM20 | 550 | 860 |

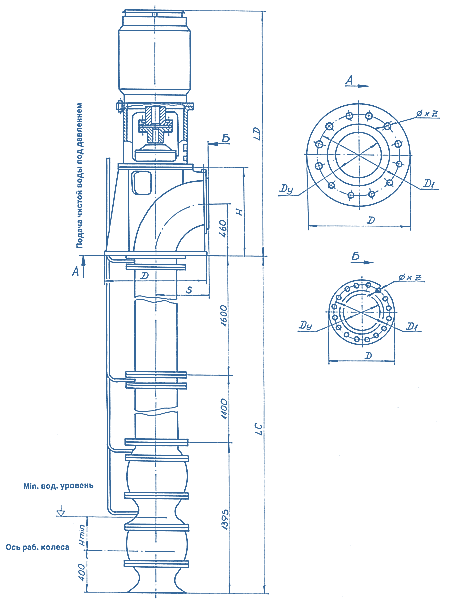

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
