description drawings diagrams technical data: if n=970 min^-1

100DT9

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	P kW
100DT9	80-130	9,5-6,5	18,5

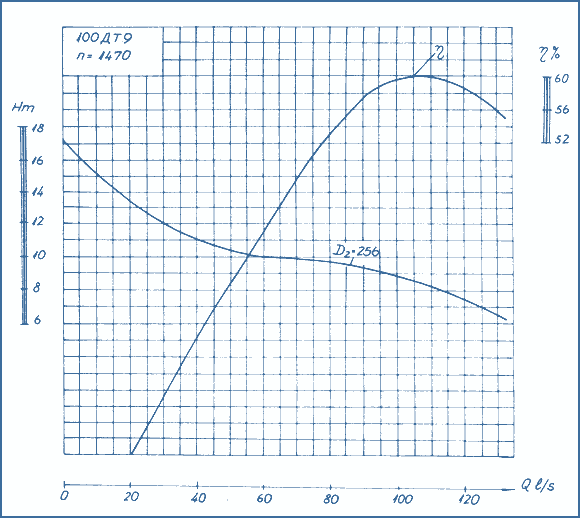

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Sections (Long 1= 1300)	Sections (Short 1= 900)	A, mm	Unit mass, kg
-	1	1330	560
-	2	2230	660
1	1	2630	680
-	3	3130	760
2	1	3930	780

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
