ET-A/65-125
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | ET-A/65-125 | 8,5 | 5 | 62 | 1 | 1,1 | 136 | 13,2 | 4 | 74 | 1,5 | 16,6 | 3 | 68 | 2,2 |

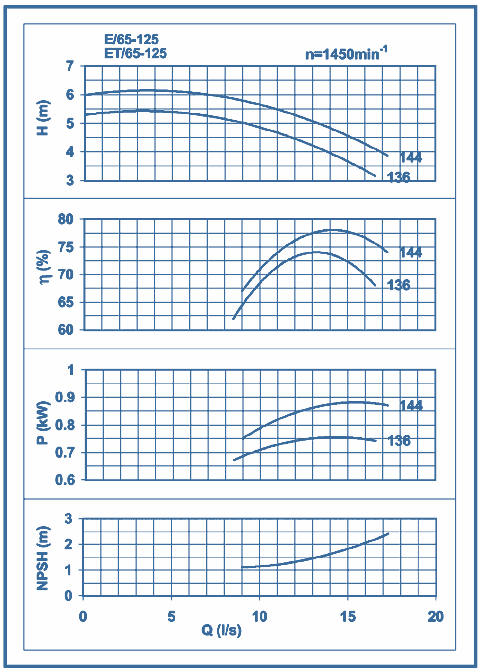

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 1,1 | 866 | 100 | 360 | 100 | 754 | 174 | 245 | 280 | 393 | 261 | 441 | 14 | 80 | 65 | 41 | 79 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
