Pumps of Bulgaria - enterprise VIPOM JSC -

2.8KS25

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	Допуст.вакуум всасыв. высота Hs,m	P kW	D2 mm
2.8KS25	2	36	29	6	3	170
	2,78	25	38	5,5
	3,5	12	32	4

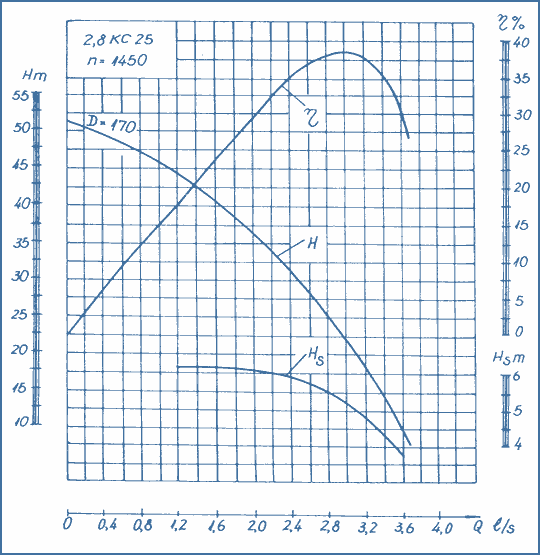

PERFORMANCE CURVES

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Unit	Power, kW	LA	LB	LD	LE	BB	BE	BD	HA	HB	HC	D	K	O	d	Z	Pump mass, kg	Unit mass, kg
2.8KC25	3	921	166	670	138	209	260	220	365	237	403	40	100	130	14	4	42	98

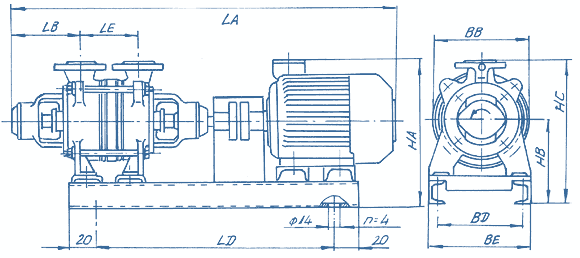

DIMENSIONAL DRAWING OF THE PUMP UNIT

flange
