Pumps of Bulgaria - enterprise VIPOM JSC -

1.7KS22

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	Допуст.вакуум всасыв. высота Hs,m	P kW	D2 mm
1.7KS22	1	32	23	7	2,2	145
	1,75	21,5	36	6,5
	2,2	12	32	5

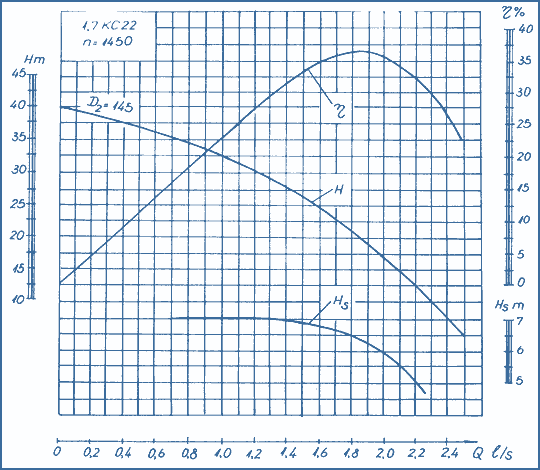

PERFORMANCE CURVES

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Unit	Power, kW	LA	LB	LD	LE	BB	BE	BD	HA	HB	HC	D	K	O	d	Z	Pump mass, kg	Unit mass, kg
1.7KC22	2,2	790	136	590	91	185	210	165	325	201	330	32	90	120	14	2	26	69

DIMENSIONAL DRAWING OF THE PUMP UNIT

flange
