55DV36A (VDV200-36А)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW | | 55DV36A (VDV200-36А) | 36 | 35 | 30 | 50 | 34 | 73 | 29 |

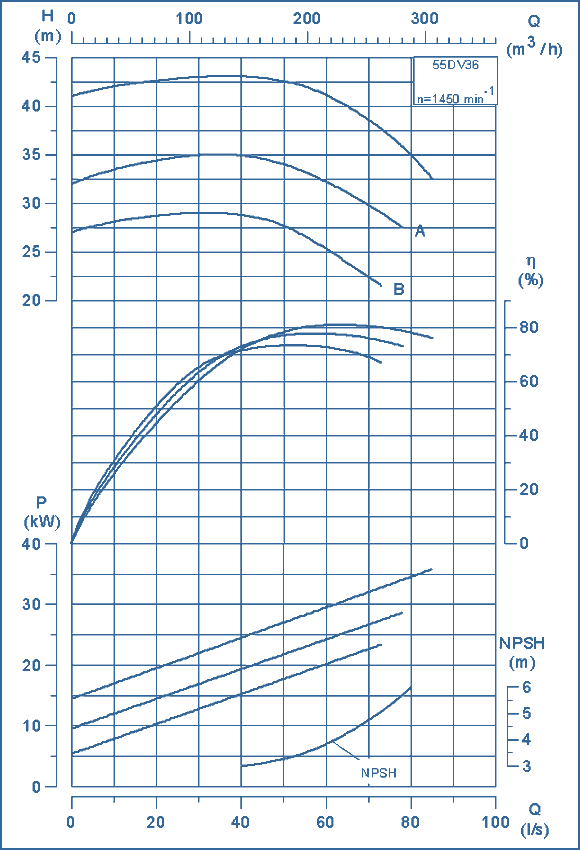

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | Power, kW | Overall dimensions of the pump (LxBxC), mm | Weight, kg | 55DV36A (VDV 200 - 36А) | 30 | 800x552x1092 | 315 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | Overall dimensions of the pump unit(LxBxH), mm | Weight, kg | 55DV36A (VDV 200 - 36А) | 30 | 800x552x1737 | 574 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
