300D40
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 300D40 | 250 | 43 | 82 | 5 | 160 | 370 | 300 | 40 | 84 | 5,5 | 350 | 36 | 82 | 6,5 |

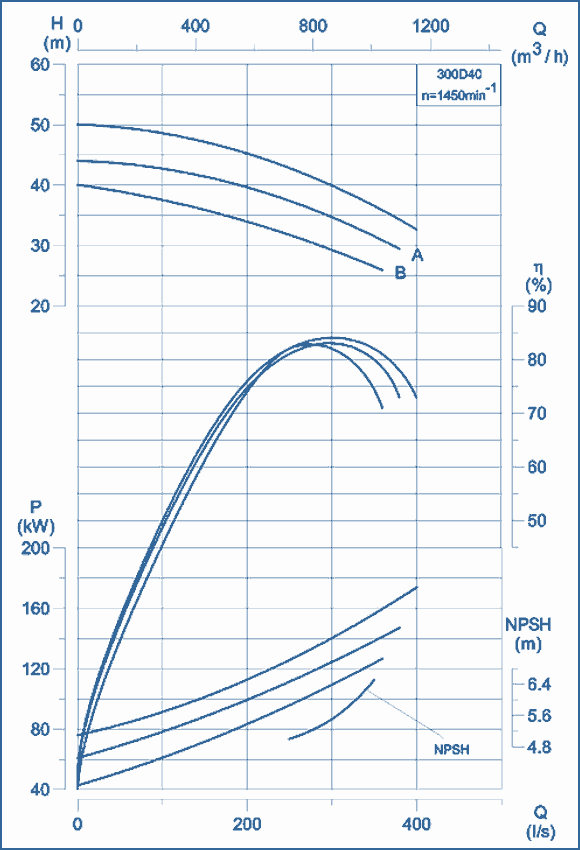

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 300D40 | 1056 | 595 | 630 | 510 | 120 | 630 | 510 | 120 | 1222 | 600 | 790 | 600 | 300 | 130 | 945 | 600 | 335 | 290 | 30 | 350 | 300 | 55 | 16 | 59 | 850 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 300D40,A | 160 | 2634 | 772 | 508 | 578 | 28 | 630 | 508 | 120 | 765 | 167 | 30 | 45 | 2434 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
