350D63A (VD1250-63A)

pump 350D63A (VD1250-63A)

TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s
H
m
η
%
NPSH
m
P
kW
D2
mm
350D63A (VD1250-63A)

210

60

76

5

250

430

305

53

83

6

375

45

82

9

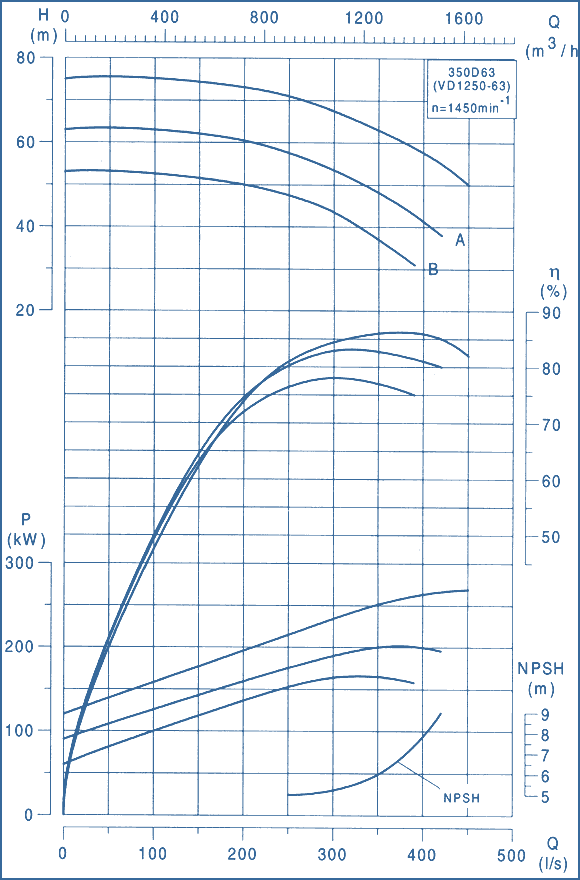

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

LA

LB

LC

LD

LE

LF

LG

LH

BA

BB

ВС

BD

BE

BF

НА

НВ

НС

HD

а

Ds

Dd

d

s

t

Weight, kg

350D63A (VD1250-63A)

1108

665

360

300

-

590

530

-

950

450

950

530

265

120

913

500

300

340

28

350

250

60

18

64

726

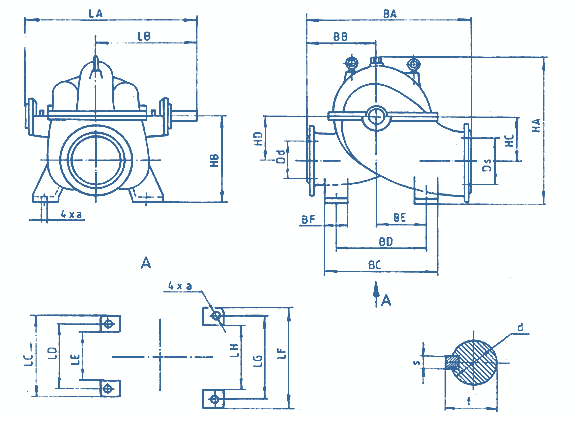

DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

P, kW

LA

LB

LC

LD

b

BA

BB

ВС

HA

HB

HC

HD

Weight, kg

350D63A (VD1250-63A)

250

2433

834

630

885

28

775

610

38

755

145

30

27

2027


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
