220D56B (VD800-56B)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 220D56B (VD800-56B) | 120 | 43 | 77 | 4,3 | 110 | 380 | 195 | 40 | 80 | 5 | 225 | 38 | 77 | 8 |

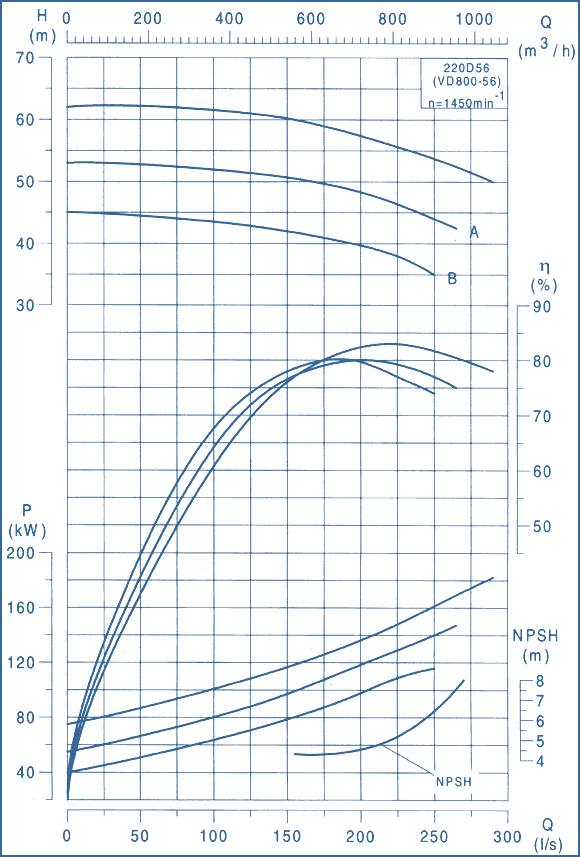

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 220D56B (VD800-56B) | 1135 | 645 | 360 | 300 | - | 590 | 530 | - | 880 | 400 | 600 | 530 | 265 | 120 | 835 | 440 | 240 | 300 | 28 | 300 | 200 | 60 | 18 | 64 | 560 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 220D56B (VD800-56B) | 110 | 2325 | 776 | 457 | 527 | 28 | 630 | 508 | 45 | 765 | 125 | 30 | 45 | 1350 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
