175D90 (VD630-90)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 175D90 (VD630-90) | 120 | 97 | 66 | 5 | 250 | 510 | 175 | 93 | 79 | 5,5 | 220 | 82 | 76 | 7 |

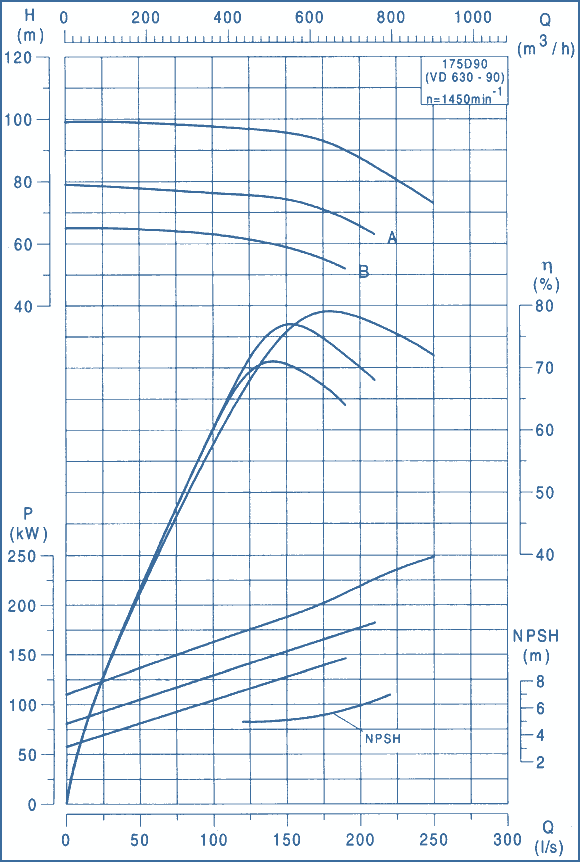

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 175D90 (VD630-90) | 1135 | 645 | 370 | 300 | 160 | 600 | 530 | 390 | 1000 | 500 | 600 | 530 | 265 | 125 | 806 | 440 | 330 | 270 | 28 | 250 | 200 | 60 | 18 | 64 | 596 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 175D90 (VD630-90) | 250 | 2460 | 814 | 630 | 885 | 28 | 775 | 610 | 87,5 | 755 | 855 | 30 | 27 | 1897 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
