140D63A (VD500-63A)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | 140D63A (VD500-63A) | 87,5 | 58 | 69 | 4 | 110 | 410 | 125 | 53 | 76 | 4,5 | 150 | 48 | 72 | 6,5 |

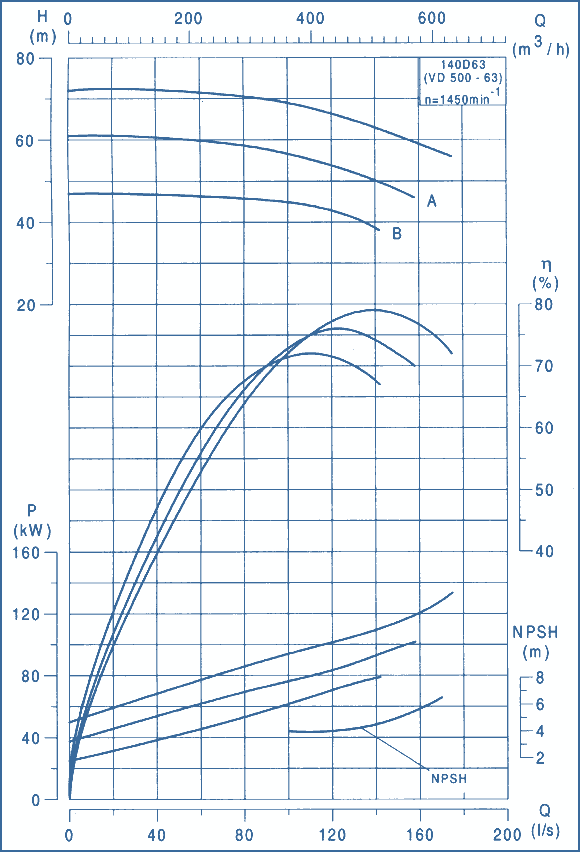

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 140D63A (VD500-63A) | 1090 | 645 | 360 | 300 | - | 590 | 530 | - | 770 | 350 | 500 | 440 | 220 | 120 | 700 | 390 | 220 | 280 | 28 | 250 | 150 | 55 | 16 | 59 | 450 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 140D63A (VD500-63A) | 110 | 2280 | 776 | 457 | 527 | 28 | 630 | 508 | 65 | 765 | 75 | 30 | 45 | 1261 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
