6FKS7

pump 6FKS7

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
6FKS7	4	8	27	1,5	180
	6	6,9	34
	8	5,5	36

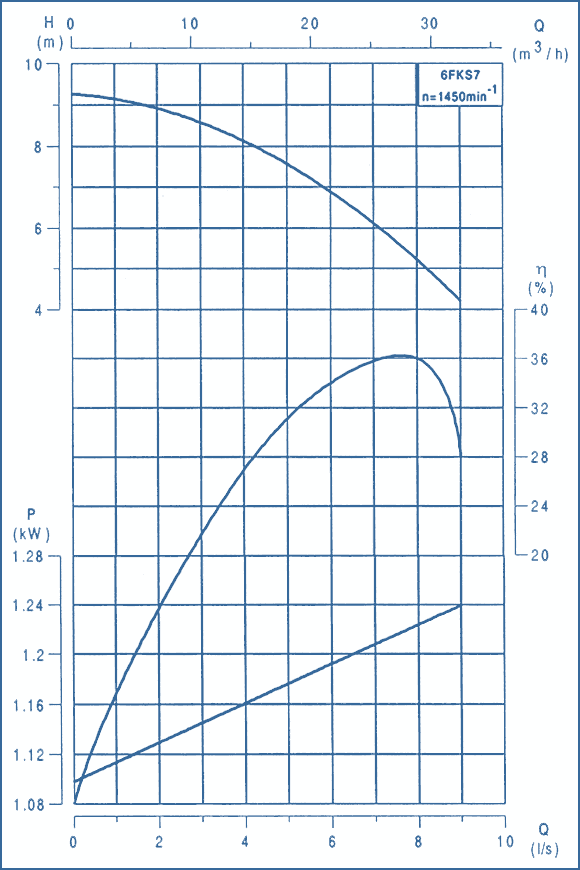

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LE	BA	BB	BD	BE	HA	HB	HC	HD	HE	a	Ds	Dd	Unit mass, kg
7,5	982	240	525	130	148	230	170	386	205	665	575	160	14	65	54	126

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
