description drawings diagrams technical data: if n=970 min^-1

FE/150-250

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FE/150-250	75	19	58	37	280
	116	16	68
	136	13	66

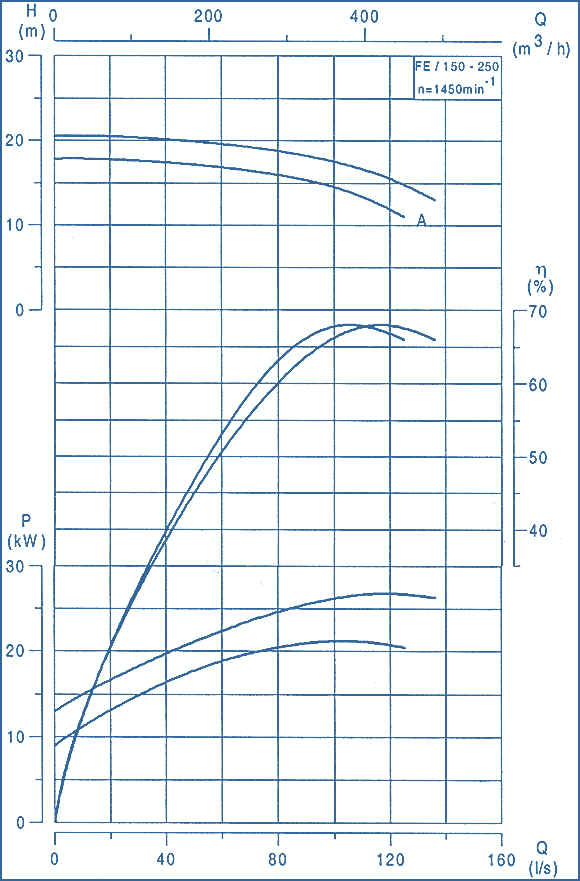

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
37	1497	160	485	1210	448	470	520	705	370	725	16	200	150	150	511

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
