description drawings diagrams technical data: if n=2900 min^-1

FE/65-200

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FE/65-200	9	15	47,5	5,5	207
	14	12,5	52
	17,5	10	47

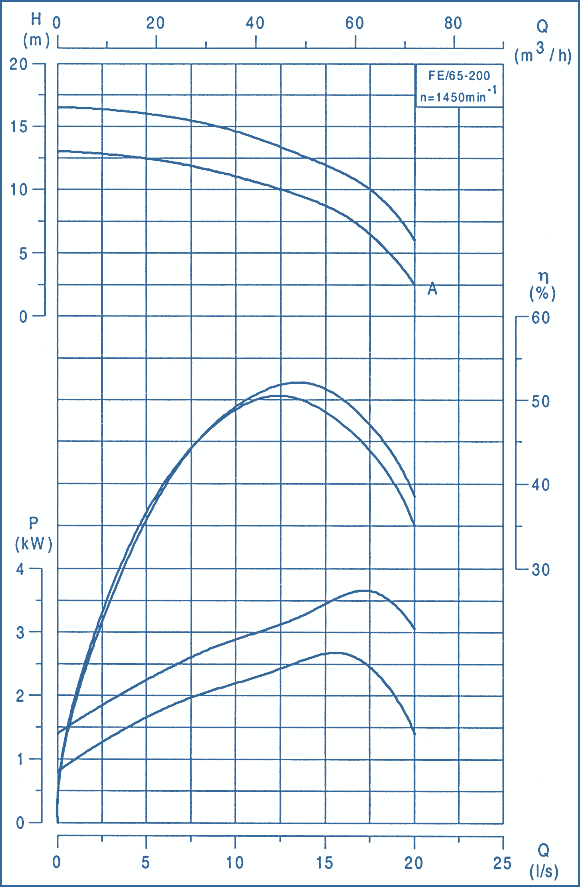

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
5,5	913	100	360	750	257	295	330	448	267	492	14	80	65	59	147

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
