description drawings diagrams technical data:

50SH40A


TECHNICAL PARAMETERS
n=1450 min-1
Pump TypeQ
l/s		H
m		η
%		P
kW		D2
mm
50SH40A

22,5

35,4

43

37

360

45

32

60

58

26

57

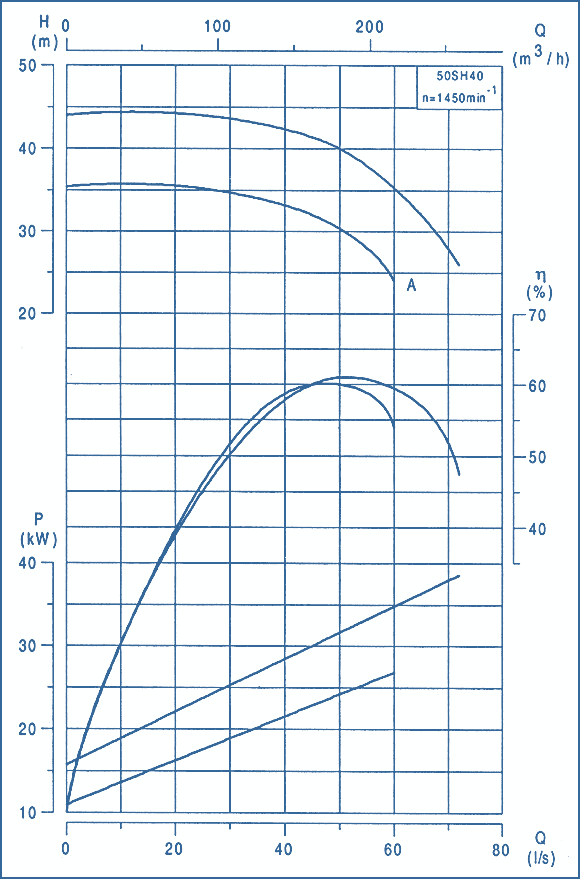

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW

LA

LB

LC

BA

BB

BC

BD

BE

HA

HB

HC

a

Unit mass, kg

37

1752

195

1195

285

373

270

455

385

735

400

680

18

595


Flange Dimensions According to BSS EN 1092-2


DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
