50SH30

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
50SH30	40	35	63	37	382
	55,5	32	66
	70	25	62

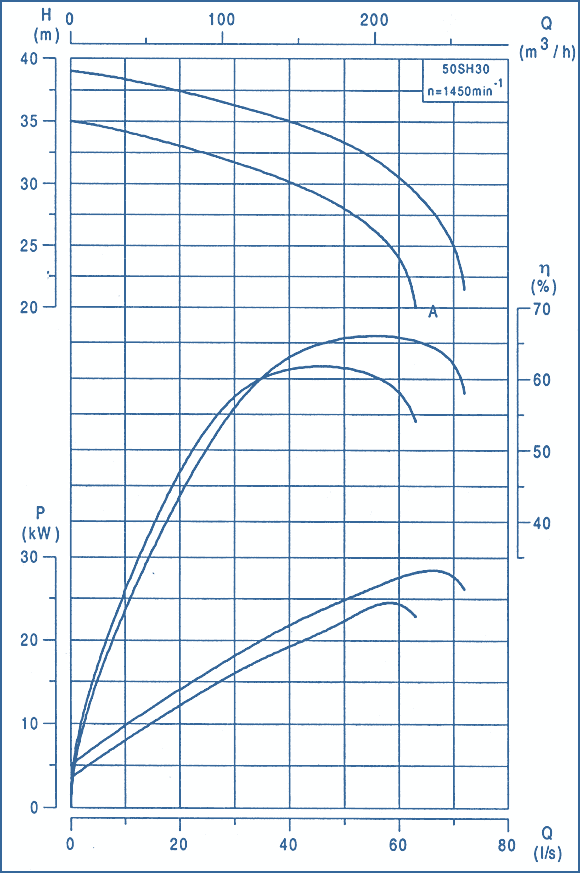

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	BA	BB	BC	BD	BE	HA	HB	HC	a	Unit mass, kg
37	1752	195	1195	235	373	220	455	385	735	400	680	18	580

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
