description drawings diagrams technical data:

FS/80-200

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FS/80-200	15	16	35	15	227
	35	15,5	55
	50	13	53

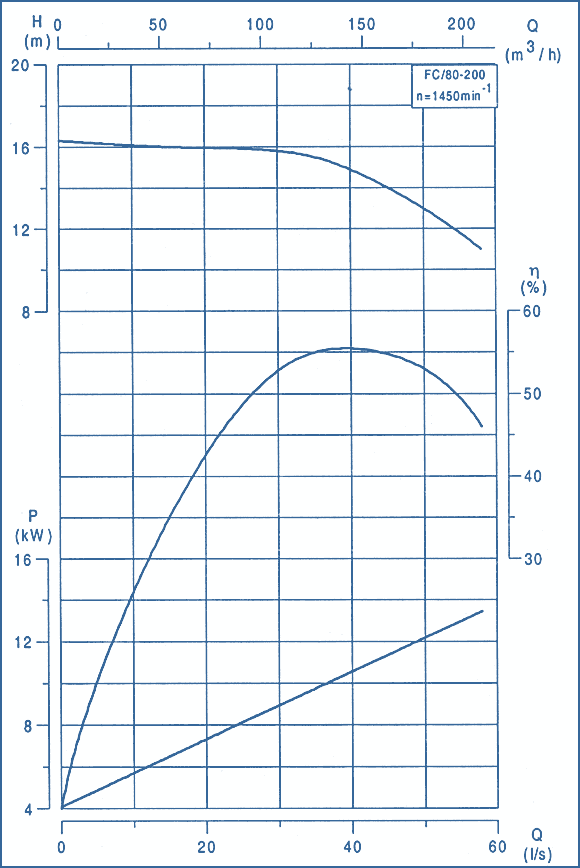

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
15	1253	125	471	1020	305	315	360	570	320	570	14	100	80	94	270

Flange Dimensions According to BSS EN 1092-2

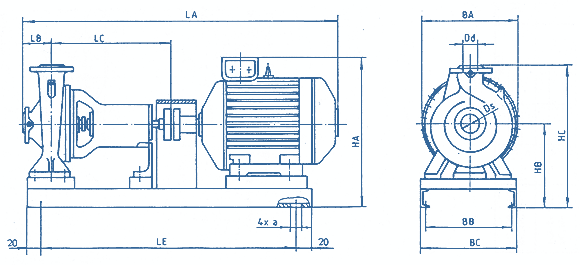

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
